600

MORE THAN 600
MACHINES ARE WORKING

More than 600 different machines for producing prestressed concrete elements and concrete hollow core slabs by extrusion method are manufactured by Engineering Oy in Finland. The uniqueness of our machines is corroborated by international patents
оборудование

TDM Engineering Oy

We design and manufacture equipment for producing concrete hollow core slabs by extrusion method.

Welcome to our company, a leader in equipment for the production of concrete hollow-core slabs, reinforced concrete products, and other building structures. We offer a full range of services to our clients, from equipment design and production to spare parts delivery and repair.

We specialize in the production of equipment for the manufacturing of concrete hollow-core slabs, as well as the sale of individual machines and spare parts for extruders. We also offer automatic concrete distribution systems and services for the reconstruction and modernization of equipment for the production of hollow-core slabs.

Our magnetic formwork and shuttering magnets for the production of reinforced concrete products are innovative solutions that significantly speed up the production process and improve the quality of the products.

We are ready to help our clients choose the optimal solution for their production needs and ensure high-quality and reliable equipment.

Contact us today to learn more about our services and find the optimal solution for your business.

Gallery

Our equipment in operation

Equipment works all over the world, gladdening their owners and clients

Russia

Extruder TDM for manufacturing concrete hollow core slabs by 1200 mm width, 220 mm heights with 6 holes

Ukraine

Extruder TDM for manufacturing concrete hollow core slabs by 1200 mm width, 220 mm heights with 6 holes

Ukraine

Extruder TDM for manufacturing concrete hollow core slabs by 1200 mm width, 160 mm heights with 8 holes

Qatar

Extruder TDM for manufacturing concrete hollow core slabs by 1200 mm width and 150, 200, 320, 400 and 500 mm heights

Netherland

Sawing machine and Extruder TDM for manufacturing concrete hollow core slabs by 1200 mm width and 200, 265, 320 and 400 mm heights

Russia

Extruder TDM for manufacturing concrete hollow core slabs by 1200 mm width and 160 with 8 holes, 220 mm heights with 6 holes, 265 mm heights with 5 holes

Malaysia

Production beds 2400 mm and 1200 mm. Extruder TDM for manufacturing concrete hollow core slabs by 1200 mm width, 220 mm heights with 6 holes

United Arab Emirates

Sawing machine and Extruder TDM for manufacturing concrete hollow core slabs by 1200 mm width and 150, 200 mm heights

Singapore

Concrete distributing systems

NEED AN ENGINEER'S CONSULTATION OR WANT TO ORDER EQUIPMENT

EXTRUDER

Extruder is built on the unique modular platform with separate drive of screw. Operating speed is up to 3 meters per minute. It is the first in the world extruder, designed on unique modular platform and assigned for producing wide spectrum of products: concrete hollow core slabs, massive slabs, full-bodied piles, hollow piles, T-beams and many others. Possibility of forming products from 80 up to 500 mm. Standard width 1,2 1,5 2,4 m.

Download: Extruder UniModel | TDM Extruder | Extruder products


SAWING MACHINE OF LENGTHWISE AND CROSS CUT

TDM sawing machine for lengthwise and cross cutting of slabs with heights up to 550 mm and width 1200 mm. Construction of sawing machine represents rigid steel construction in combination with complex electric control unit. Sawing machine operates in manual or automatic mode. Preliminarily programmed settings of sawing can be installed for different shapes, special programs for automatic double cutting of high plate are embedded in control system. Control system allows retracing whole history of cuttings. Sawing speed can be adjusted.
Lengthwise sawing of slabs is provided in manual and automatic mode. Operating angles are: 0-180 degrees, switching between modes is manual.
Machine is simple in use, service and maintenance. Position of cutting disk projected on the plate with the help of laser line.

Download: Sawing Uni | Sawing OptiPro | Sawing TDM Uni | Sawing TDM Opti
TDM MULTIFUNCTION MACHINE


STEEL PRODUCTION BEDS

TDM are a cassette structure and are made of high quality structural steel. The standard track width is 1.2 1.5 and 2.4 meters. The tracks are equipped with a heating system.

Download: TDM beds


CONCRETE DISTRIBUTING SYSTEMS

Concrete distributing systems are designed for supplying ready-to-use concrete mix from concrete mixing plant to molding shop or production area. It is assigned for operating with rectilinear and curvilinear areas of double-rail tracks. We offer Kubel of distributing systems with electric engines (up to 4), transverse portal or semi-portal distributor and complex control system.

Download: TDM shuttle Download: TDM INTERMEDIATE hopper


MODERNIZATION AND MAINTENANCE OF EQUIPMENT

Our company produces full or partial repair and modernization of equipment for the production of prestressed concrete elements and concrete hollow core slabs by extrusion method of Finnish, German and Italian production.
We provide:
- mounting new compaction modules into baseline frames
- modernization of control panels and electric cabinets

Download: TDM modernization


SPARE PARTS FOR EXTRUDERS

We offer wide assortment of spare parts for equipment for producing concrete hollow core slabs by extrusion forming method of Finnish and Italian production. We also realize retrofit installation, adjusting of equipment and personnel training for work optimization of production equipment.
We supply:
- Augers
- Sleeves
- Shafts
- Control panels and electric cabinets elements
- Wear plates

Download: TDM spare parts


Magnetic formwork

Litec presents an original solution based on magnets. Magnetic formwork is used in the production of precast concrete structures. This type of formwork allows you to speed up and facilitate the process of production of concrete products. A series of magnetic formwork includes:

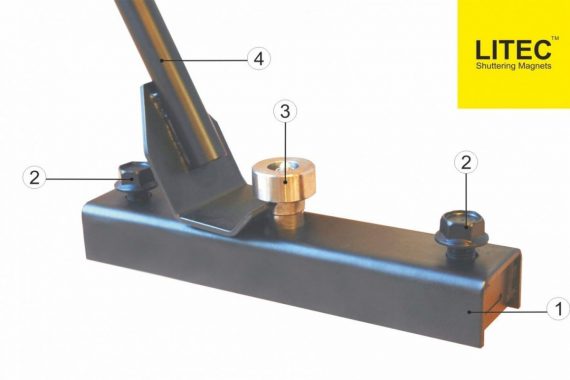

Shuttering magnets are used to form the formwork on the steel table

Magnetic formwork system assembled -  shuttering magnets; adapters; insert magnets; formwork board, etc.

Insert magnets are used to form hollow plates, openings, for fixing embedded parts.

Thanks to the insert magnets, it is possible to solve difficult problems.

Magnetic chamfer is used to form technological recesses and beveled corners.
