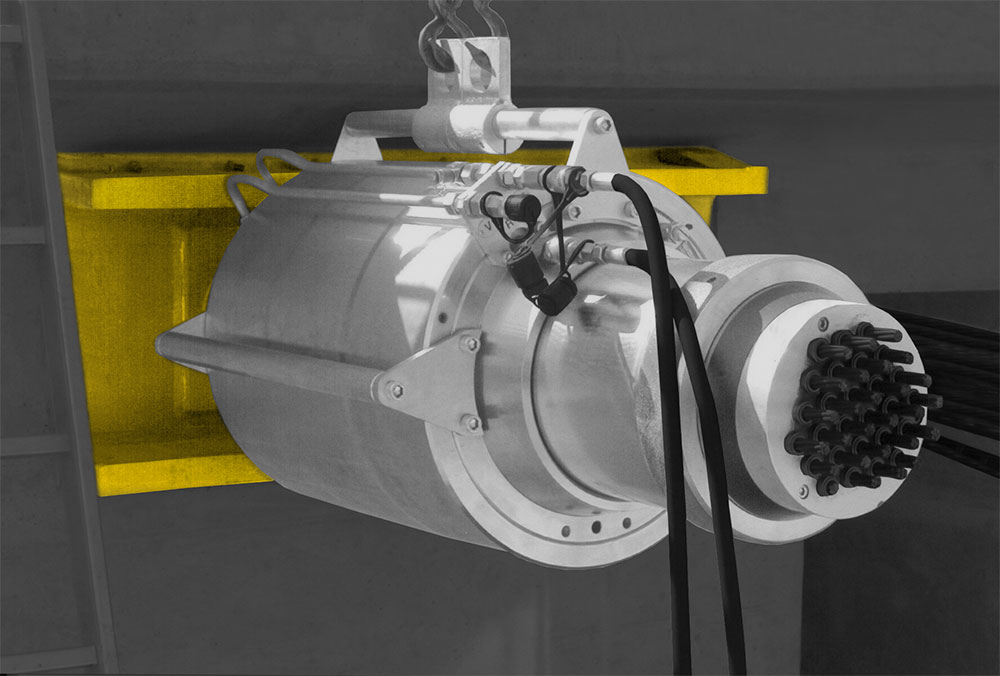

How to use a jack for tensioning steel reinforcement, wire and strands: General information
Rebar tensioning jacks are specialised equipment, without which it is difficult to imagine modern processes of erecting reinforced concrete structures. Its main task is to ensure uniform tension of steel reinforcement, wire and strands, which ultimately affects the strength and stability of the finished concrete products. It is important not only to use this tool correctly, but also to carefully prepare for the process, following the established rules and standards. In this article we will analyse in detail how the jack for tensioning reinforcement works, what stages this process includes and what to pay attention to when working.
1. Preparing to work with the jack
Before you start working with a jack for tensioning steel rebar, wire and strands, you need to make a good preparation. The first step is to check all the materials and tools that will be needed in the process. These include reinforcing steel bars, jack, anchors, fasteners and measuring equipment.
Attention should also be paid to the preparation of the work site. The workplace should be free of unnecessary objects, so that nothing interferes with the process of tensioning the reinforcement. In addition, it is important to check the serviceability of the jack – make sure that all its mechanisms work correctly, there are no oil leaks or other technical faults. Only then you can proceed to the following
2. Installation of the rebar tensioning jack
Correct installation of the rebar jack is the key to successful performance of all further operations. The jack must be installed on a stable surface, preferably on an anchor plate that can withstand the high force generated during the tensioning process. It is important that the jack is fixed strictly perpendicular to the reinforcing bar, as any deviation may lead to uneven tensioning and deformation of the structure.
Before starting work, check again whether the jack is securely fixed and has no misalignment. If necessary, additional means can be used to stabilise it, especially when tensioning reinforcement in difficult construction conditions.
3. Tensioning of steel reinforcement, wire or strands: control and adjustment
The main stage of the work is the process of tensioning the rebar using a jack. To begin with, the pressure in the system must be set, gradually increasing. The jack for tensioning steel reinforcement, wire and strands creates a force that is transmitted to the reinforcement rod, which elongates under load. It is very important to monitor the level of the load using a pressure gauge or other measuring devices to ensure that the tension is even.
The tensioning process may take some time, depending on the length and diameter of the reinforcement and the required force. It is important not to exceed the permissible load, as this may lead to failure of the reinforcement or the jack itself. A gradual increase in pressure with constant monitoring will help to avoid undesirable consequences.
4. Securing the reinforcement after tensioning
After the reinforcement has been stretched to the required level, it must be fixed in this position. For this purpose, special anchors are used to hold the bar under tension. The anchors are fixed at the ends of the reinforcing bar, preventing it from moving backwards.
When fixing, it is important to ensure that the reinforcing bar is in the correct position and does not shift when the jacking pressure is reduced. Gradual release of pressure will avoid sudden changes in the load on the reinforcement and prevent it from deforming. The jack can then be fully depressurised and all connections can be checked.
5. Completion of the work: inspection and quality control
Having completed the rebar tensioning and fixing process, the rebar jack should be carefully removed, checking the condition of all fasteners and anchors. It is important to make sure that the reinforcement is in the correct position, there are no loose connections or signs of damage to the materials.
In addition, it is recommended to carry out control measurements using specialised equipment to ensure that the work performed complies with the established standards. If all parameters are within acceptable limits, the process can be considered complete.
6. Features and tips for using the jack
When working with a rebar tensioning jack, it is important to keep in mind a few key points that will help achieve the best results. Firstly, always follow the equipment manufacturer’s recommendations, as each jack has its own peculiarities in operation. Secondly, when working with large structures, additional load controls should be used to avoid uneven tensioning of reinforcing bars. Finally, do not forget about regular maintenance of the jack – timely oil change and inspection of hydraulic systems will help to prolong the life of the equipment and ensure its safe use.
The use of a rebar tensioning jack is an integral part of reinforced concrete construction processes. This equipment makes it possible to evenly distribute the load on the reinforcement bars, which ensures the strength and durability of the entire structure. Proper installation, tension control and fixation of reinforcement are the key points that should be paid attention to when working with a jack. Compliance with all instructions and operating rules will help you to achieve high results and avoid possible mistakes.
